Technical Features

CONSTRUCTION & SPECIFICATION:-

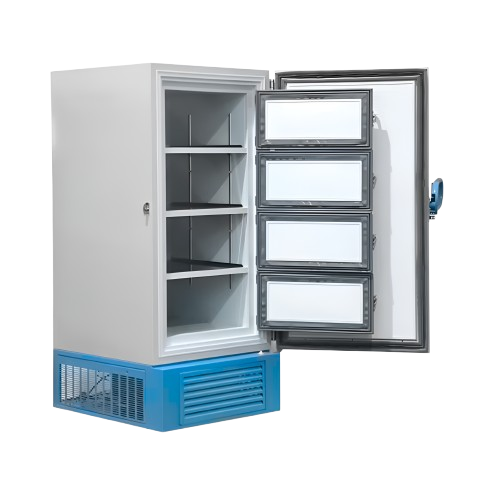

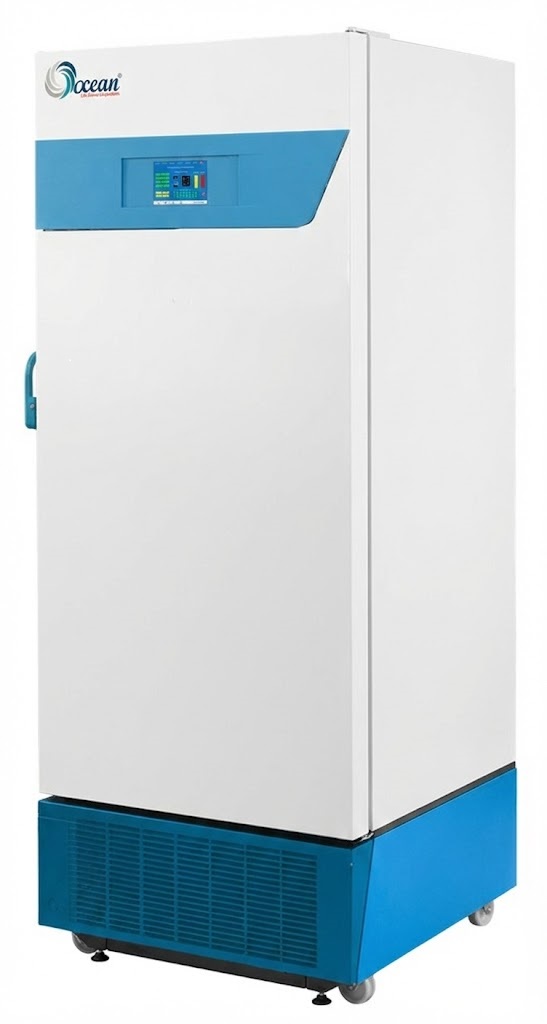

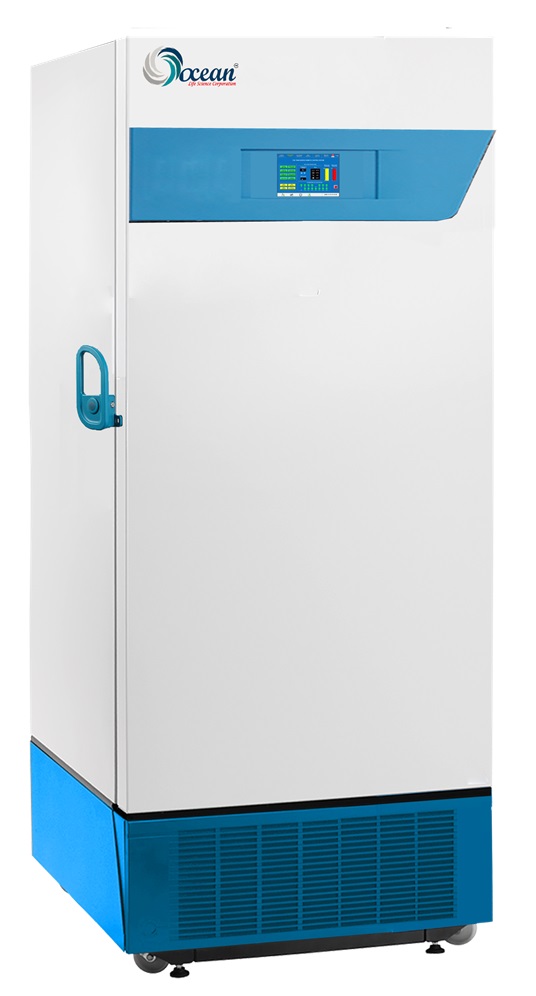

• Upright vertical deep freezer front opening.
• The exterior body is made up of galvanized steel body with a tough powder-coated finish constructed on steel.
• Solid cabinet casing with phosphate cold rolled sheet steel to prevent corrosions.
• Internal made of Polished Stainless-Steel grade 304 2B for easy cleaning and to eliminate potential for oxidation.
• Single hand operation with an easy-to-use ergonomic door handles with integrated key lock.
• Individual 4 compartment with individual insulated inner door tight sealing to prevent temperature loss and avoid cold air loss provides rapid recovery of temperature after door closing.
• Automated vents port decompression valve facility to lower air pressure for quick re-access to samples as part of the eye level display advanced interface.
• Doors are Ergonomically designed Triple silicon section seal for easy operation and perfect grip with door lock at left side and key arrangement for smooth and easy operation; for enhanced safety of user self closing.
• Security keyed locks and also with option to lock the ergonomically designed door handle with a padlock.
• Solid doors fitted with reinforced tight sealing and body insulated by VIP with Green PUF Non-CFC advanced vacuum Polyurethane Foam (PUF) insulated 5” 125 mm thick between inner chamber and outer body. 4.5” in door provide best temperature uniformity.
• Ecofriendly CFC-HCFC free insulation between inner and outer wall for minimal thermal losses and to maintain highest heat insulation.
• Easy to remove washable filter for protection from dust on the condenser and increasing refrigeration performance.
• Compressor fan air filter conveniently located on the front panel for ease of access for cleaning and maintenance.
• Uniquely designed hermetically sealed 2 no’s of AC rotating compressor with evaporators highly efficient compressor (1.25 HP) system and these are designed to run at single phase AC supply.
• Rapid direct in cooling copper coil system by ISI marked hermetically sealed compressors with mixed gas refrigerant, CFC- HCFC free, Natural refrigerant environment friendly gases.
• RS485 port to connect with central (temperature) monitoring system and facility of output through freezer for remote monitoring purpose.
• Compressor start delay and stopping interval protection.
• Fast temperature recovery booster. Fully Microprocessor controlled highly efficient Cascade freezing technology helps to attain the required temperature within short time cycle. short cooling time at maximum ambient temperature of 10 to +40°C.
• Fully Microprocessor controlled highly efficient freezing technology helps to attain the required temperature within short time cycle. Advanced remote monitoring feature, temperature recorder with data logger compatible with LIS.
• Fully programmable microprocessor controller with LED display panel & set point security with Password protection.
• Reliable of monitoring fixtures with security lock to prevent unintentional switch off.
• Inbuilt battery backup for the display and alarm.
• Audible and visible alarm system for unwanted temperature rise, fault acknowledgement, sudden power failure, condenser fault alarm, remote contact alarm, system failure and battery low, high and low temperature, hot condenser, door ajar, clean filter Indicator and power failure alarm.
• Single RTD (PT100 platinum RTD) temperature sensor for temperature monitoring and accuracy control, Resettable over current breaker fitted for protection.
• Maintenance free temperature backup system to retain temperature in sub zero condition for period of minimum 4-5 hours with full load and in close door conditions in case of power failure or any other shut down.
• Eco friendly CFC-FREE, HCFC-FREE non-inflammable refrigerants are used with low power consumption.
• Working efficiently at wide ambient temperature range of 10 to +40°C with relative humidity of 15 to 90%, Temperature setting range -65 °C to -86°C adjustable with increment of ±1°C at 10 to +40°C Maximum ambient operating temperature.
• Adjustable feet for levelling with 4 number of lockable (front two are lockable) castor wheels.
• Electrical supply: 220-240 Volts AC (50 Hz)
• Nearly silent operation noise level <60 dB ±10dB.
• 10 KVA stabilizer,
• Inbuilt Temperature chart recorder to record the temperature data.
