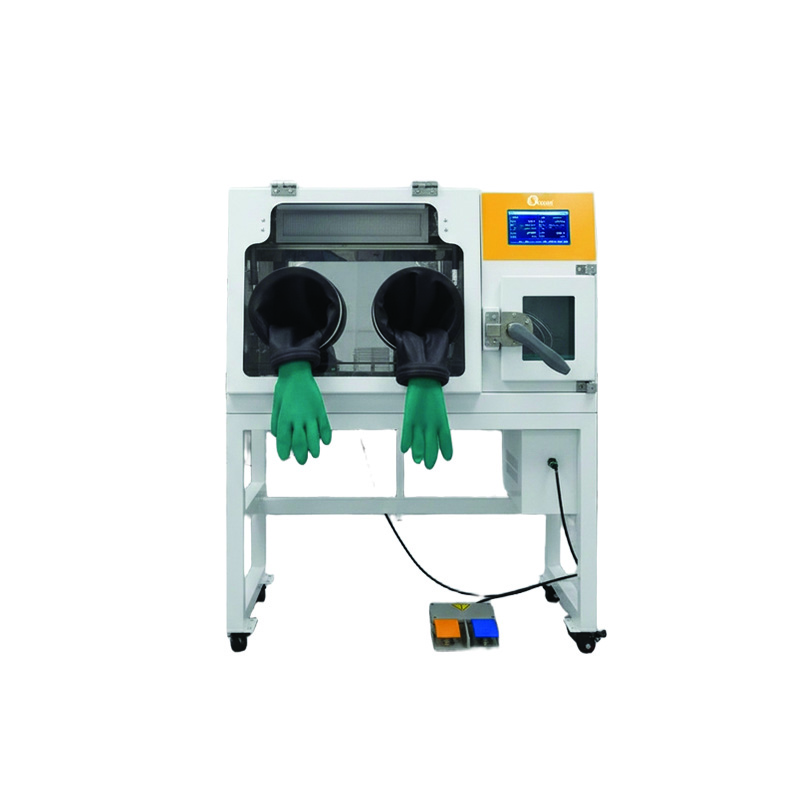

ANAEROBIC WORKSTATION

(OLSC-115AN Series)

PRODUCT OVERVIEW

The Anaerobic Workstation is a compact, fully integrated solution designed for safe handling, incubation, and manipulation of anaerobic organisms under strictly controlled anoxic conditions. The system ensures precise control of oxygen, temperature, and humidity while providing user comfort, operational safety, and reliable long-term performance for microbiology laboratories.

Key Features

• Compact ergonomic workstation with high internal plate capacity
• Instant-access sleeveless ports for unrestricted hand movement
• Fully controlled anaerobic (anoxic) working environment
• Integrated airlock system for contamination-free sample transfer
• Touchscreen-based monitoring of all critical parameters
• Real-time oxygen monitoring with catalyst and anaerobic indicator system
• Complete gas management system supplied with cylinders and regulators

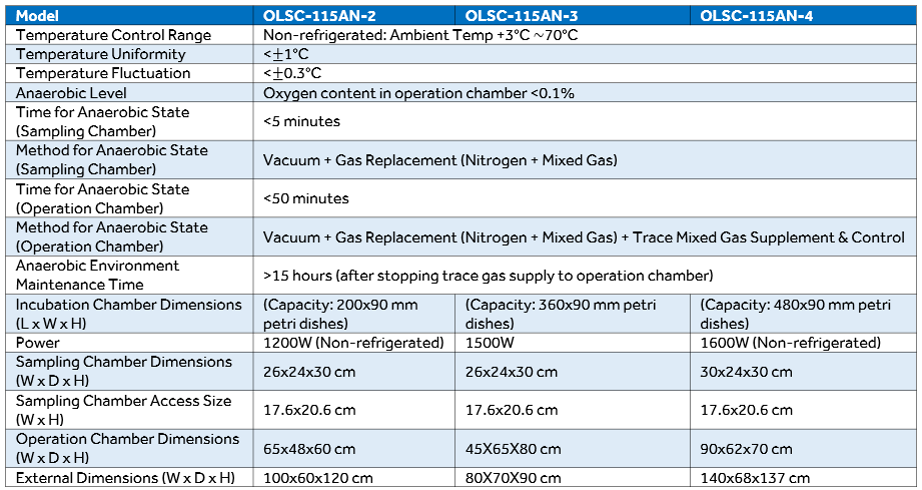

Technical

1. Working Capacity: 360 culture plates (Ø 90 mm)
2. Humidity Control: Up to ≥ 80% RH (ambient dependent)
3. Anaerobic Condition: Fully anoxic environment support
4. Airlock Capacity: Minimum 10 plates per cycle; single plate entry supported
5. Airlock Cycle Time: ≥ 20 seconds
6. Gas System: Operates with anaerobic gas cylinder
7. Safety: Electronic gas leak detector included
8. Data Logging: Event logger with date & time stamped alarms and status notificationsOptional

   1.Refrigerated 4°C~60°C.

   2.Gases:  (H2, CO2, N2, O2)
