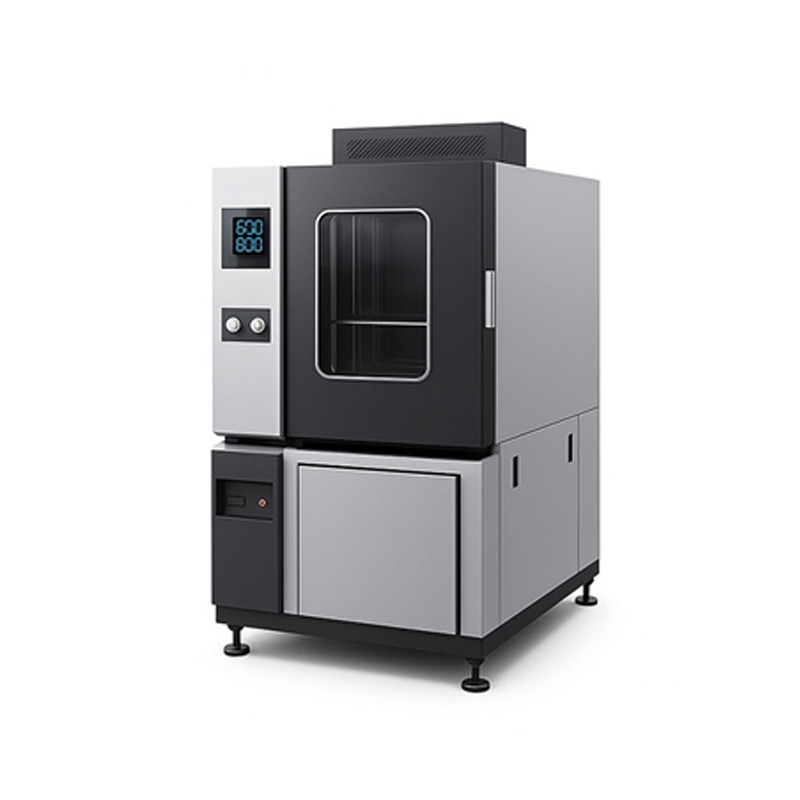

CONSTANT TEMPERATURE AND HUMIDITY TEST CHAMBER

This series of product is high-precision thermostatic equipment with functions of illumination and humidification. It is widely used in plant cultivation, seed germination, seed growing, histolytic and microbe culturing, as well as small animal raising and other temperature and humidity experiments. It is the perfect equipment for production and research of biology, agriculture, forestry, genetic engineering and graziery departments.

Product Overview

It is suitable for the adaptability test of electrical, electronic, instrumentation and other products, parts and materials during storage, transportation and use in high temperature environment. It is reliability test equipment for various electronic, electrical, plastic raw materials and other materials during heat resistance, moisture resistance, dryness resistance test and quality control engineering.

Product Features

The box body is processed by CNC machine tools, with beautiful and elegant shape, and adopts non-reaction handles for easy operation; The inner shell of the chamber is made of stainless steel, and the outer shell of the box is made of A3 steel plate sprayed with plastic, which increases the appearance texture and cleanliness; The large observation window with lighting keeps the chamber bright, and the embedded tempered glass in the heating body is used to clearly observe the situation inside the box at any time; There is a test hole with a diameter of 50mm on each side of the box, which can be used for external test power and signal lines at the same time to prevent mutual interference.

Humidity control range

10% RH to 98% RH

Controller & Program Features

Programmable PLC-based control with in-built memory for multiple programs.
Self-monitored digital measuring and control system for precise regulation.
Designed specifically for environmental test systems with high accuracy.
Efficient PLC coordinates and monitors all chamber functions and provides operational fault diagnostics.
Color Touch Panel Display with graphical & tabular representation of readings.
Convenient input of fixed values and program operations.
Graphic display of set points, actual values, operating time, and remaining cycles.
Communication Interfaces: Ethernet, USB.
Help function for user assistance.
Safety Features: Password protection Lockable physical control panel Audible & visual alarm system
Condensation Protection: Automatic evaporator-based system prevents sample condensation between -40°C and +60°C.
