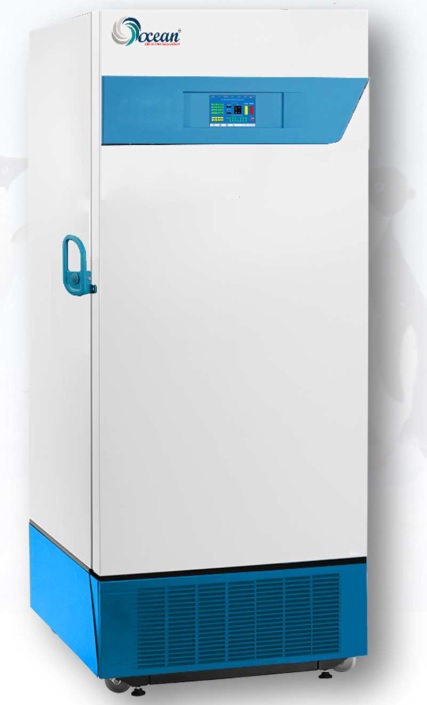

-86°C Ultra Low Temperature Deep Freezer

Key Features

• Temperature Control System
  • Controlled by micro-computer, LCD display touched screen; USB & RS485
  data port for downloading the data. • The inner temperature can be adjusted at the range of -50°C – 86°C, the
  temperature Uniformity is +/-5°C. • There are a variety of ultra-low temperature storage solutions for individual
  laboratory users to choose from to meet the growing demand for sample
  storage.
  Temperature Control • Microprocessor control, 7″color LCD touch screen display inner
  temperature clearly, and with easy view; on board data storage for least 10
  years and USB port for exporting the data. • The recovery time 15-20 minutes at 1 minutes of 90° door open at full load
  condition with ambient temperature of 20°C. • The inner temperature can be adjustable at the range of -50℃~-86℃, with
  an increment of 0.1℃; • Freezer provide all the door opening and closing duration data. • Lock and password for protection to prevent arbitrary adjustment of
  operating parameters.
  Construction
  • Outer body High Quality anti-microbial powder quoted Mild Steel. • High-quality stainless steel 304 G 20swg Anti-corrosive and rust-proof. • V.I.P+PUF insulation panels to ensure the insulation performance; • Triple points silicon door gasket.
  Safety Control • Audible and visible alarm system for unwanted temperature rise, sudden
  power failure , system failure and battery low, high and low temperature,
  hot condenser, door ajar, Remote Alarm, generic service warning and low
  display battery. • Three alarming methods: buzzer alarming, digital flashing alarming and
  Remote alarm. • Protection function: power-on delay, time between stops, 72h alarm &
  display • Power-switch to avoid accidental switch-off of unit.
  Refrigeration System
  • Optimized cascade refrigeration technology, ISI marked compressor to
  reach a high refrigeration effect; HFC-free, CFC-free, HCFC-free nonflammable refrigeration system. • Specially designed Heat Exchanger, high efficient heat transfer, energy
  conservation; • CFC-Free overall polyurethane foaming insulation; • Vents port decompression valve facility to lower air pressure for easy door
  opening and allowing user to re-open the door.
  Ergonomic Design
  • Safety door lock, preventing unauthorized access, RFID access. • Wide voltage design from 192V to 242V 50-60hz; • Ground clearance 100 mm (10cm). • Pressure-equalization port design, easy to open the door; • Heavy type caster and locking with adjustable screw, easy to move and fix; • Ultra-simple condenser filter design, convenient for maintenance and
  washing. • The levelling for adjustments will be available.
  Humanized Design
  • Unique handle design: the door can be opened by both hands, individual
  press lock on the handle and 2 padlocks; • Unit has Test hole nos. 2/25mm diameter for CO2/LN2 back-up. • Press-out type dust removal cover with locks, simple and convenient for
  maintenance.
